PRODUCT FEATURES

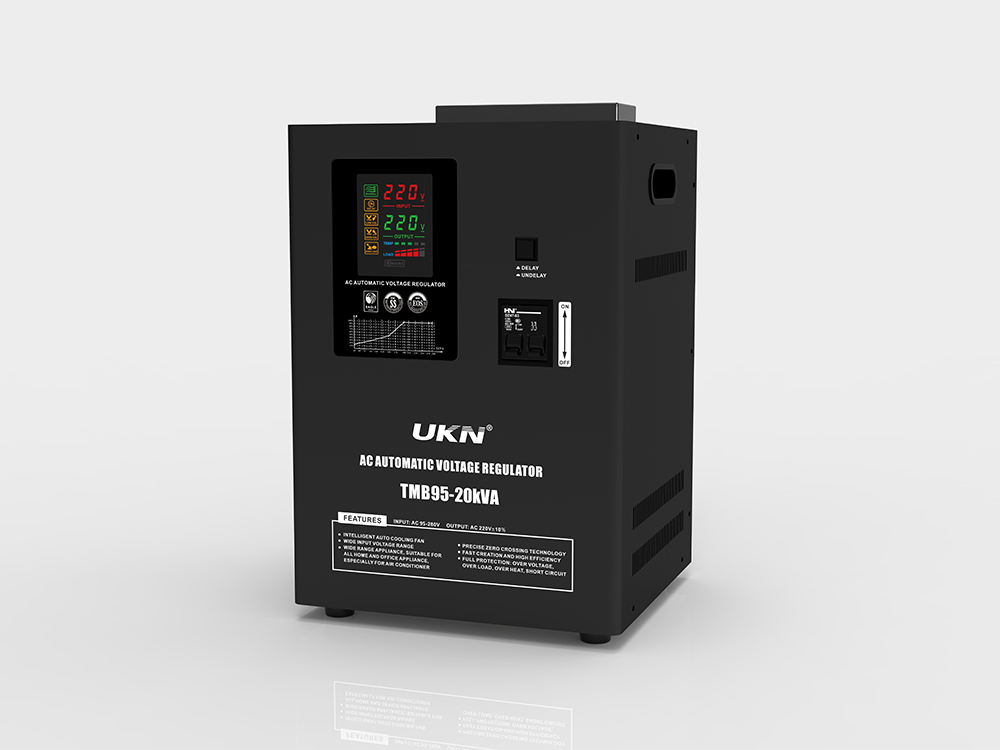

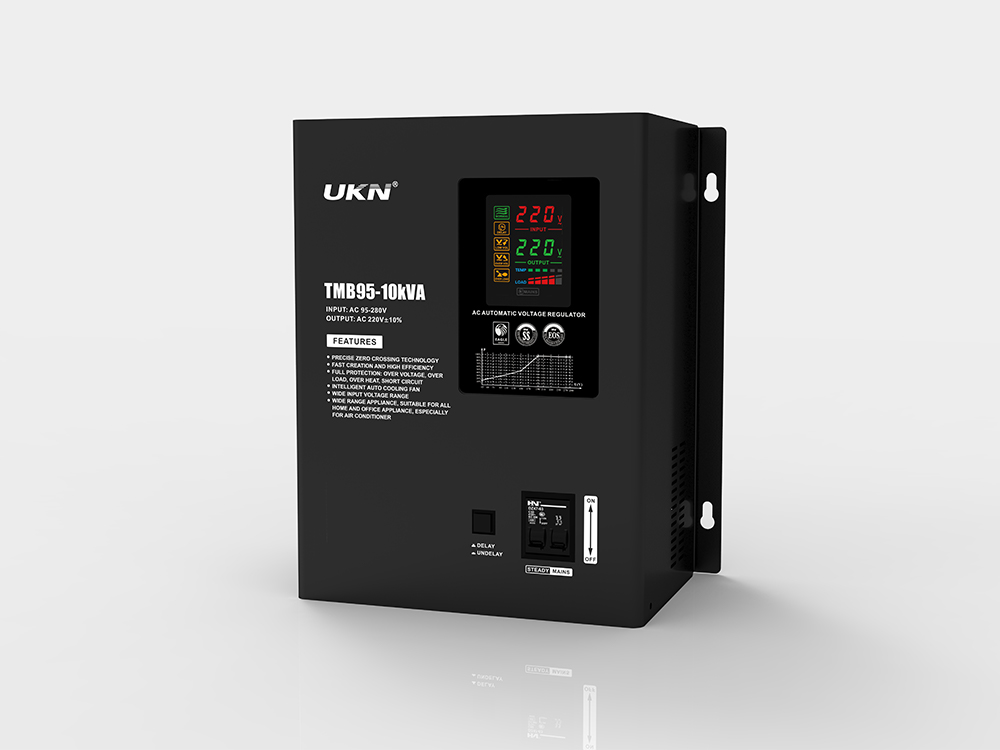

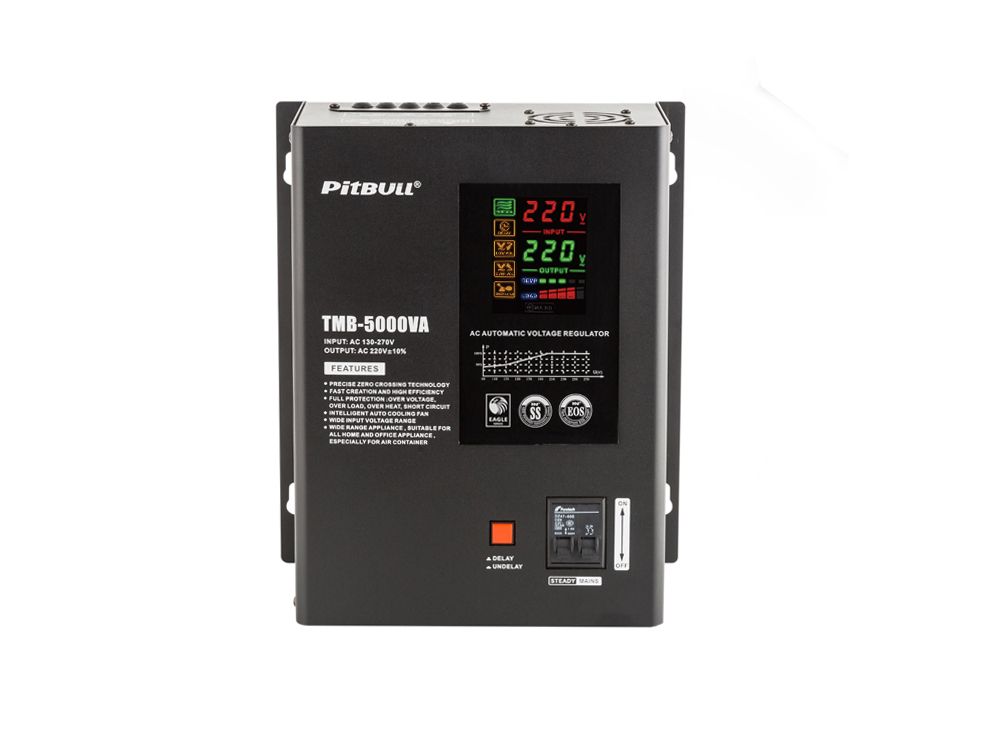

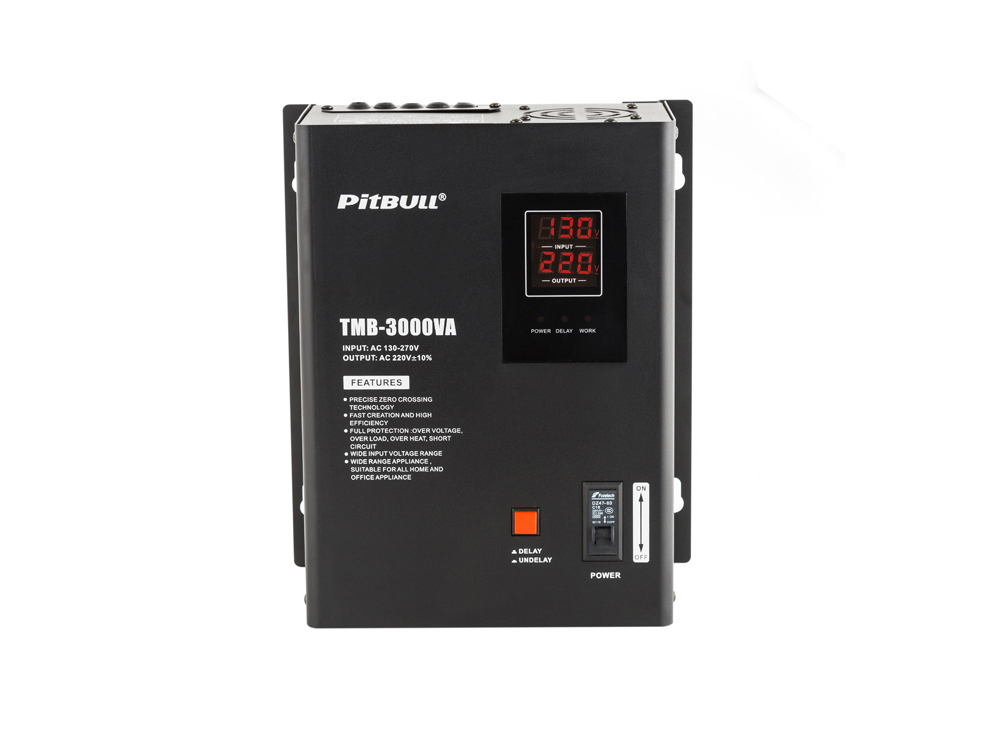

The product of this model is a Wall mounted AVR voltage regulator,both for desktop and wall mounted.With LED digital display design.It is characterized by stable work, high pressure regulation speed and wide voltage regulation range.

This Wall mounted AVR refers to the regulation of relatively minor fluctuations in AC voltage. These voltage regulators are routinely used in a home to keep the voltage within the range needed by household appliances. AC voltage regulators use a servomechanism or relay that continually responds to minute changes in the transformer’s voltage to keep the house voltage within a narrow range.

MODEL	TMB(8000VA-12kW)	TMB45(8000VA-12kVA)	TMB60(8000VA-12kVA)	TMB95(8000VA-12kVA)
INPUT VOLTAGE	AC 130V270V	AC 45V280V	AC 60V-280V	AC 95V-280V
OUTPUT VOI7AGE	AC220V±10% 50/60HZ
DELAY TIME	Short Delay:3-5sec Long Deley:3-7min
PROTECTION	Over Voltage(246V±4V),Overload,High Temperature,Short Circuit
POWER	8000VA	10000VA	12000VA
FEATURE	The product of this model is a 220V fully automatic voltage regulator, both for desktop and wall mounted.With LED digital display design.lt is characterized by stable work, high pressure regulation speed and wide voltage regulation range.
APPLICATION	It is widely used in various industries, small office equipment,refrigerator, electric fan, computer, pump, air conditioner and other household appliances.
Power Factor	≥0.9	≥0.9	≥0.9	≥0.9
Control	4 relays	7 relays	6 relays	5 relays
Digital display	show input and output voltage、Over\Low Voltage、Overload、delay、temperature	show input and output voltage、Over\Low Voltage、Overload、delay、temperature	show input and output voltage、Over\Low Voltage、Overload、delay、temperature	show input and output voltage、Over\Low Voltage、Overload、delay、temperature
Temperature protection	yes	yes	yes	yes
Short circuit&over load	air-switch/（fuse：500-2000va）	air-switch/（fuse：500-2000va）	air-switch/（fuse：500-2000va）	air-switch/（fuse：500-2000va）
Cooling type	FAN/Vents	FAN/Vents	FAN/Vents	FAN/Vents
Efficiency	AC 97%	AC 97%	AC 97%	AC 97%
Temperature	.-20°~55℃	.-20°~55℃	.-20°~55℃	.-20°~55℃
Humidity	<90	<90	<90	<90

R-image2 R-image3 R-image4 R-image5 R-image6

Q 1. what's the payment terms?

A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Q 2. how's the delivery time ?

A. usually it will take about two weeks for production

Q 3. tell me the standard of package?

A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.

Q 4. Could you offer Form A or C/O ?

A. It is totally not a problem. We can prepare relative documents to office to apply for this certificate.

Q 5.Would you accept to use our logo ?

A.If you have good quantity,it absolute no problem to do OEM.

Q 6.We want to know month capacity.

A. It depends on which model.For example for relay type small capacity , month capacity can reach near 1000pcs and big capacity near 800pcs.

Q 7.Where is your market?

Our products are popular in North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East,Eastern Asia, Western Europe and so on.Some of them are our regular customers and some of them are developing. We hope you can join us.

Q 8. what kind of certificate you have ?

Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.

Q 9. what kind of material of transformer?

A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirments. In fact,those two have no difference if normal work well. Only except the long life. Copper is better and also higher price. For relay type stabilizer,we use toroidal coils, the material is aluminum. comparing with square coils,toroidal coils with high efficiency.
