Item mode: SBW
Suitable for some important industrial devices and supporting single machine.
Item mode: SBW
Suitable for some important industrial devices and supporting single machine.
SBW-50Kva is a kind of automatic three phase ac voltage controller.
It is also a kind of servo motor control type regulator. Unlike single-phase controllers, Our three phase ac voltage controller loads (balanced) are connected in star shape.
It is long-term with simple operation.The Performance is reliable.
Can work unattended for a long time.
Three phase ac voltage controller is widely used in post office, stores, elevators, hospital, school, publishing house and stock exchange.

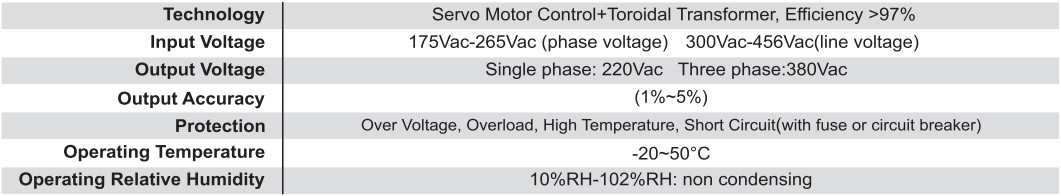

MODEL | SBW(50kVA-200kVA) | |||
INPUT VOLTAGE | 175Vac-265\^c (phase voltage) 300Vac-456Vac(line voltage) | |||
OUTPUT VOITAGE | Single phase: 220Vac Three phase:380Vac | |||
DELAY TIME | Short Delay:3-5sec | |||
PROTECTION | Over Voltage(246V±4V),Overioad,High Temperature,Short Circuit | |||
POWER | 50KVA/60KVA/100KVA/120KVA/150KVA/200KVA/250KVA/300KVA/320KVA/400KVA/500KVA/60K0VA/800KVA/1000KVA/1200KVA/1600KVA/2000KVA | |||
FEATURE | The product of this model is cabinet type design,pointer display/digital display selection.lt is characterized high-precision output.Suitable for a wide range of load.can withstand instantaneous overload.Long-term continuous work can be carried out, manual/ automatic switching and the automatic protection for over voltage, phase loss, phase sequence and mechanical failure are provided | |||
APPLICATION | It is widely used in various industries, small office equipment,refrigerator, electric fan, computer, pump, air conditioner and other household appliances. | |||
Power Factor | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 |
Control | High precision servo motor | |||

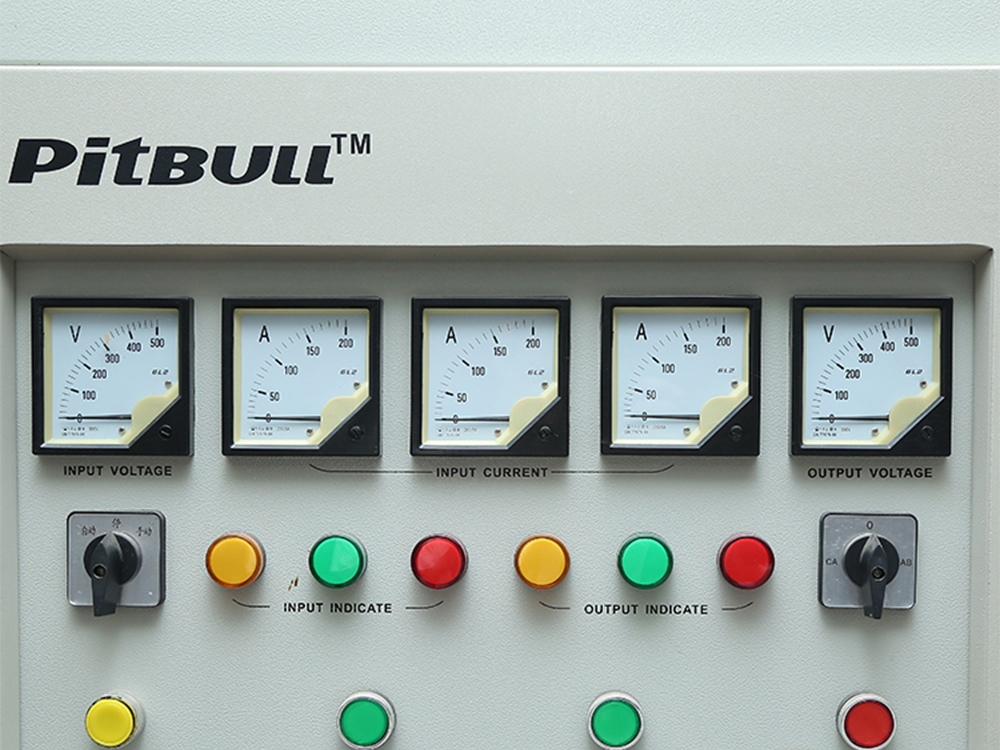

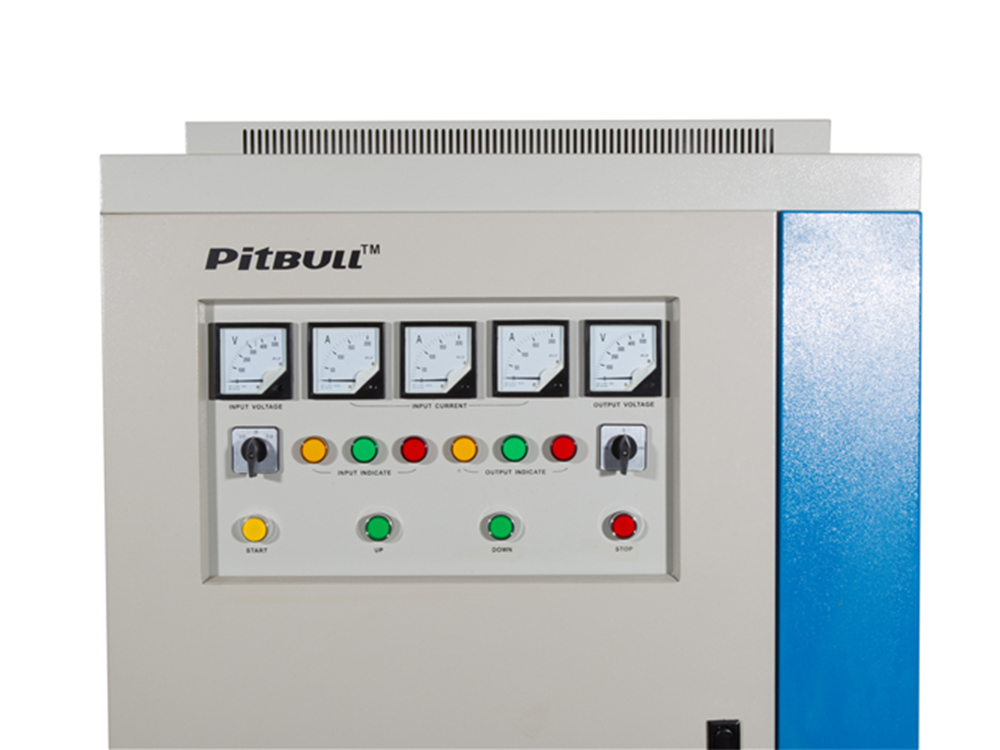

Digital display | show input and output voltage、Over\Low Voltage、Overload、delay、temperature | show input and output voltage、Over\Low Voltage、Overload、delay、temperature | show input and output voltage、Over\Low Voltage、Overload、delay、temperature | show input and output voltage、Over\Low Voltage、Overload、delay、temperature |
Temperature protection | yes | yes | yes | yes |
Short circuit&over load | air-switch/（fuse：500-2000va） | air-switch/（fuse：500-2000va） | air-switch/（fuse：500-2000va） | air-switch/（fuse：500-2000va） |
Cooling type | FAN/Vents | FAN/Vents | FAN/Vents | FAN/Vents |
Efficiency | AC 97% | AC 97% | AC 97% | AC 97% |
Temperature | 20°~55℃ | 20°~55℃ | 20°~55℃ | 20°~55℃ |
Humidity | <90 | <90 | <90 | <90 |
Products parameters：
SBW-50Kva is a kind of automatic three phase ac voltage controller.
It is also a kind of servo motor control type regulator. Unlike single-phase controllers, Our three phase ac voltage controller loads (balanced) are connected in star shape.
It is long-term with simple operation.The Performance is reliable.
Can work unattended for a long time.
Three phase ac voltage controller is widely used in post office, stores, elevators, hospital, school, publishing house and stock exchange.
MODEL | SBW(50kVA-200kVA) | |||
INPUT VOLTAGE | 175Vac-265\^c (phase voltage) 300Vac-456Vac(line voltage) | |||
OUTPUT VOITAGE | Single phase: 220Vac Three phase:380Vac | |||
DELAY TIME | Short Delay:3-5sec | |||
PROTECTION | Over Voltage(246V±4V),Overioad,High Temperature,Short Circuit | |||
POWER | 50KVA/60KVA/100KVA/120KVA/150KVA/200KVA/250KVA/300KVA/320KVA/400KVA/500KVA/60K0VA/800KVA/1000KVA/1200KVA/1600KVA/2000KVA | |||
FEATURE | The product of this model is cabinet type design,pointer display/digital display selection.lt is characterized high-precision output.Suitable for a wide range of load.can withstand instantaneous overload.Long-term continuous work can be carried out, manual/ automatic switching and the automatic protection for over voltage, phase loss, phase sequence and mechanical failure are provided | |||
APPLICATION | It is widely used in various industries, small office equipment,refrigerator, electric fan, computer, pump, air conditioner and other household appliances. | |||
Power Factor | ≥0.9 | ≥0.9 | ≥0.9 | ≥0.9 |
Control | High precision servo motor | |||
Digital display | show input and output voltage、Over\Low Voltage、Overload、delay、temperature | show input and output voltage、Over\Low Voltage、Overload、delay、temperature | show input and output voltage、Over\Low Voltage、Overload、delay、temperature | show input and output voltage、Over\Low Voltage、Overload、delay、temperature |
Temperature protection | yes | yes | yes | yes |
Short circuit&over load | air-switch/（fuse：500-2000va） | air-switch/（fuse：500-2000va） | air-switch/（fuse：500-2000va） | air-switch/（fuse：500-2000va） |
Cooling type | FAN/Vents | FAN/Vents | FAN/Vents | FAN/Vents |
Efficiency | AC 97% | AC 97% | AC 97% | AC 97% |
Temperature | 20°~55℃ | 20°~55℃ | 20°~55℃ | 20°~55℃ |
Humidity | <90 | <90 | <90 | <90 |
Products parameters：
01.What is the meaning of item code “ SBW ” ?
A:These 3 letters are the first syllable of the pronunciation for “three phase”, “compensating”, and “stabilizer” in Chinese.
02.What is the out put voltage of your three phase ac voltage controller ?
A:There are three parallel Live-wire output terminals and one Naught-wire terminal in our three phase ac voltage controller. In normal operation, the voltage between any 2 Live-wire is "380v ± 1%-5%". But, the voltage between any single Live-wire and the Naught-wire is "220v ± 1%-5%".
03.What about the input electricity of your products,is it direct current or alternating current?
A:All of our products,the input electricity is “AC”,that means alternating current electricity.
01.What is the meaning of item code “ SBW ” ?
A:These 3 letters are the first syllable of the pronunciation for “three phase”, “compensating”, and “stabilizer” in Chinese.
02.What is the out put voltage of your three phase ac voltage controller ?
A:There are three parallel Live-wire output terminals and one Naught-wire terminal in our three phase ac voltage controller. In normal operation, the voltage between any 2 Live-wire is "380v ± 1%-5%". But, the voltage between any single Live-wire and the Naught-wire is "220v ± 1%-5%".
03.What about the input electricity of your products,is it direct current or alternating current?
A:All of our products,the input electricity is “AC”,that means alternating current electricity.
